Mylar Tape for Wire Harness Wrapping
JIAO TAO TAO Mylar Tape for Wire Harness Wrapping

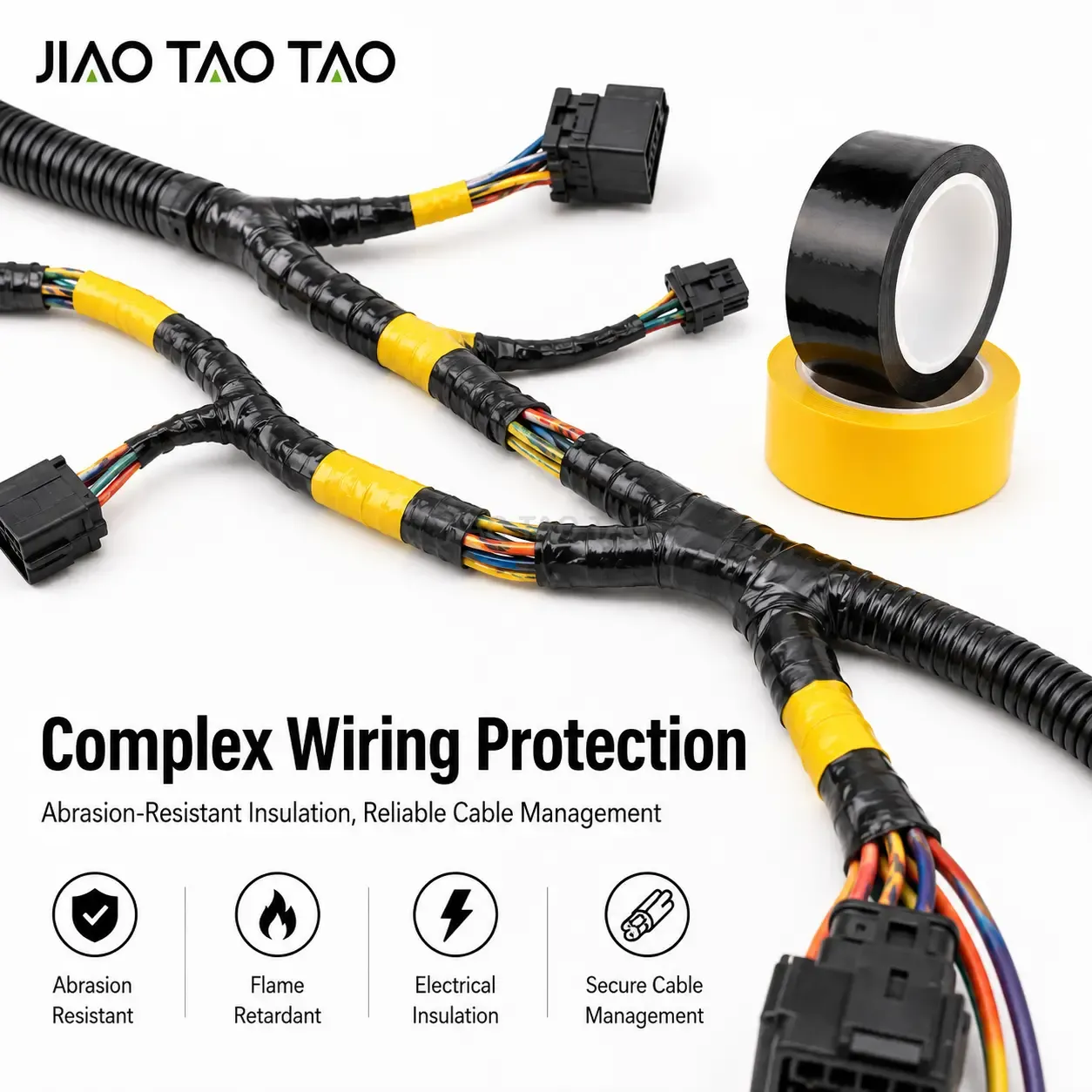

JIAO TAO TAO Mylar Tape for Wire Harness Wrapping is designed for cable bundling, insulation protection, and wire routing support in electrical and industrial equipment. It helps improve harness organization, supports cleaner cable layouts, and allows manufacturers to choose suitable tape widths and thicknesses for different wire harness sizes and assembly requirements.
What is Mylar Tape for Wire Harness Wrapping?

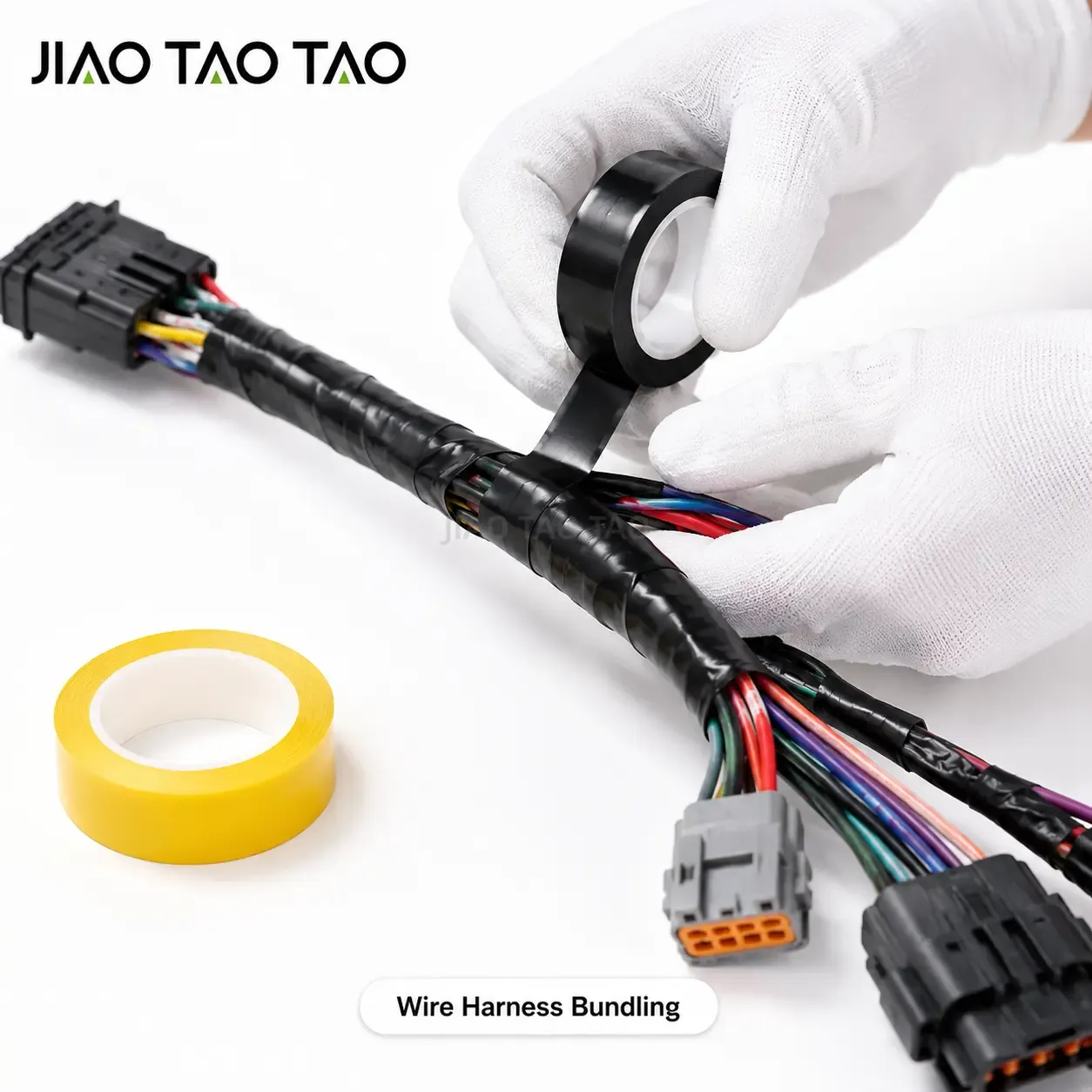

Mylar tape for wire harness wrapping is a polyester film insulation tape used in wire harness structures where electrical isolation, cable bundling, and surface protection are required. It is commonly applied to wire bundles, cable joints, routing sections, and local protection points inside electrical equipment. Compared with general-purpose tapes, this type of polyester insulation tape is more suitable for harness production processes that require cleaner wrapping, more consistent insulation support, and flexible size selection for different cable bundle diameters.

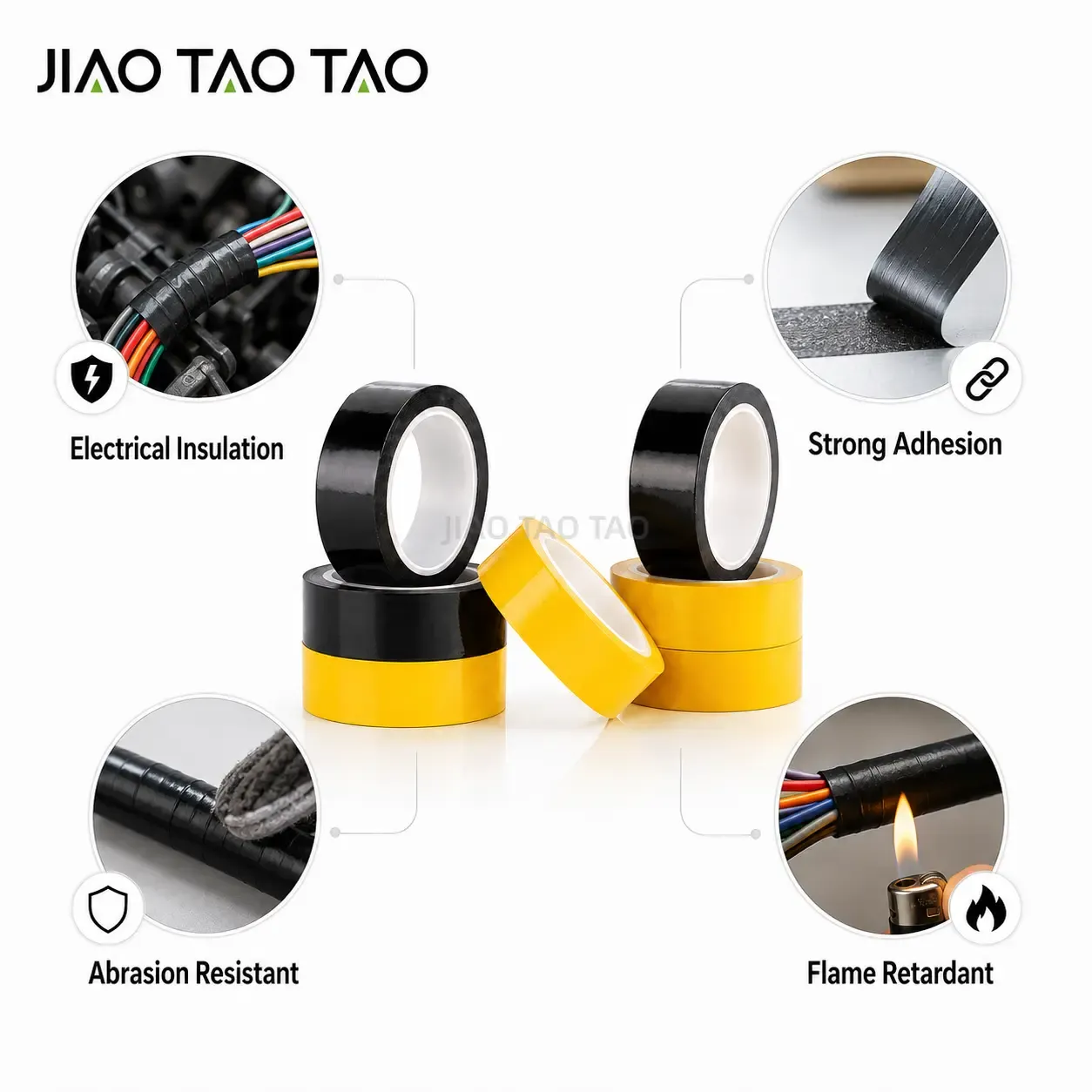

Core Features

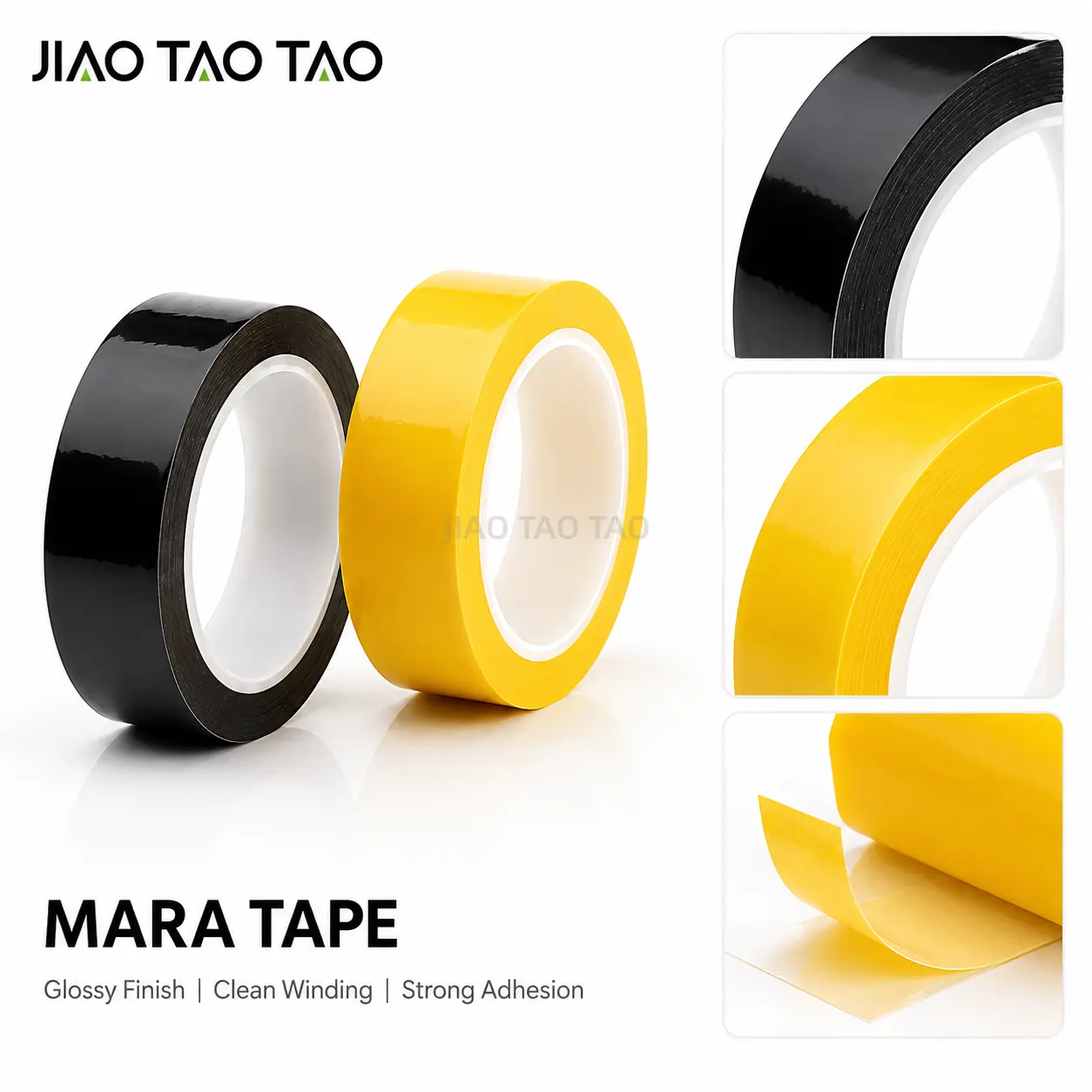

- Polyester film backing
Suitable for wire harness wrapping, cable insulation, and electrical separation applications. - Electrical insulation support
Helps provide stable insulation performance around wire bundles and routing sections. - Flexible size selection
Available in different slit widths, lengths, and thickness options for different harness diameters and layout requirements. - Cleaner harness organization
Helps make wire bundle wrapping more consistent during production and assembly. - OEM converting support
Supports slitting, rewinding, and packaging customization for wire harness manufacturers.
Technical Specifications
| Item | Description |
|---|---|
| Color | Yellow | Black | Green | Blue | Pink | Transparent | Amber | Red | Purple | White | Orange | Deep Yellow | Custom |
| Thickness (mm) | 0.025 | 0.038 | 0.05 | 0.055 | 0.06 | 0.08 | 0.1 | 0.13 | 0.15 | Custom |
| Width (mm) | 1 mm to 1270 mm | Custom |
| Length (m) | 33 | 50 | 66 | 100 | Custom |
| Core Diameter (mm) | 25 | 32 | 38 | 76 | Custom |
| Packaging Method | Label | OPP Bag | PVC Box | Carton | Custom |
| Related Processing | + Release Liner | Die Cutting | Custom |
Detailed Technical Specifications
| Model | Total Thickness (mm) | Backing Thickness (mm) | Adhesive Thickness (mm) | Peel Strength (N/25mm) | Tensile Strength (N/10mm) | Elongation at Break (%) | Breakdown Voltage (kV) | Temperature Resistance (Long-term) | Flame Retardant Rating |
|---|---|---|---|---|---|---|---|---|---|
| JTT-MR2500 | 0.025 | 0.025 | 0 (Light Coat) | 6–7 | ≥32 | ≥60 | ≥3.8 | 130℃ | UL94 VTM-2 |
| JTT-MR2513 | 0.038 | 0.025 | 0.013 | 6–7 | ≥32 | ≥70 | ≥4.0 | 130℃ | UL94 VTM-2 |
| JTT-MR5000 | 0.050 | 0.050 | 0 (Light Coat) | 7–8 | ≥35 | ≥80 | ≥4.5 | 130℃ | UL94 VTM-2 |
| JTT-MR5005 | 0.055 | 0.050 | 0.005 | 7–8 | ≥35 | ≥80 | ≥4.8 | 130℃ | UL94 VTM-2 |
| JTT-MR5030 | 0.080 | 0.050 | 0.030 | 8–9 | ≥38 | ≥100 | ≥5.5 | 130℃ | UL94 VTM-2 |
| JTT-MR7525 | 0.100 | 0.075 | 0.025 | 8–10 | ≥40 | ≥100 | ≥6.0 | 130℃ | UL94 VTM-2 |
| JTT-MR10030 | 0.130 | 0.100 | 0.030 | 9–11 | ≥45 | ≥120 | ≥7.0 | 130℃ | UL94 VTM-2 |
| JTT-MR12525 | 0.150 | 0.125 | 0.025 | 10–12 | ≥50 | ≥120 | ≥8.0 | 130℃ | UL94 VTM-2 |
Main Applications
- Motor coil outer wrapping
Used to wrap motor coils and improve insulation organization during assembly. - Layer-to-layer insulation
Helps separate winding layers and maintain electrical isolation inside motor winding structures. - Slot and winding protection
Can be used to protect local winding areas where controlled insulation is required. - General motor assembly insulation
Suitable for electrical separation and fixing in motor production and repair work.
How to Choose the Right Tape Size
- Narrow widths are suitable for small motor coils, compact winding points, and slot insulation positions.
- Medium widths are commonly used for standard motor winding and interlayer coverage.
- Wider rolls are better for larger motor winding structures or broader insulation areas.
- Thinner grades are easier to apply in compact and tightly wound motor designs.
- Thicker grades are more suitable when stronger insulation build-up or added surface protection is needed.
Advantages & Suitable Scenarios
Customization Options
1. Size Customization
- Custom width
- Custom length
- Custom thickness
- Custom core size
2. Converting Options
- Slit rolls
- Rewound rolls
- Custom cut lengths
- OEM packaging
3. Color Options
- Yellow
- Black
- White
- Blue
- Green
4. Supply Support
- OEM / ODM support
- Bulk industrial supply
- Export packaging support
- Factory direct delivery
FAQ — JIAO TAO TAO PET Insulation Tape for Motor Winding
Q1 | What is PET insulation tape used for in motor winding?
It is mainly used for motor coil wrapping, layer separation, winding protection, and electrical insulation inside motor structures.
Q2 | How do I choose the right width?
The width should match the winding height, insulation coverage area, and wrapping method. Narrow widths are better for smaller motor coils, while wider widths are more efficient for larger winding areas.
Q3 | How do I choose the right thickness?
Thinner tape is more flexible for tight motor winding structures. Thicker tape is more suitable when additional insulation build-up or stronger protection is needed.
Q4 | Can it be customized?
Yes. JIAO TAO TAO supports custom width, length, thickness, color, and OEM packaging according to motor production requirements.
Q5 | Is it suitable for batch motor production?
Yes. It is suitable for batch motor manufacturing and can be supplied in slit rolls or other converting formats for industrial use.
Q6 | Does it support OEM service?
Yes. OEM slitting, rewinding, and bulk industrial supply are available.
