JTT-GC280 High Temperature Resistant Insulation Fiberglass glass cloth tape Used for Transformer Reactor Insulation Strapping
Model Number: JTT-GC280
Base Material: Woven Glass Cloth
Adhesive Type: Silicone Adhesive
Total Thickness: 0.18mm
Color: White
Temperature Resistance: Up to 260°C
Adhesion to Steel: ≥2.5 N/cm
Tensile Strength: ≥900 N/25mm
Dielectric Strength: ≥3.5 kV
Flame Retardant: Yes
Length: 20m / 33m / Custom
Width: 10mm / 15mm / 20mm / Custom
Core Size: 3 inch (76mm)
Application Surface: Metal, Electrical Insulation, High-temp Parts
Main Features: High heat resistance, abrasion resistance, strong adhesion
Use Case: Electrical insulation, transformer wrapping, motor coil protection
Packaging: Individual shrink wrap or OEM label
OEM/ODM: Available
Sample: Free sample available
Shelf Life: 12 months
Compliance: RoHS / REACH / UL 510
Country of Origin: China
Brand Name: JIAOTAOTAO
Glass Cloth Adhesive Tape
OurGlass Cloth Adhesive Tape offers excellent high-temperature resistance, strong insulation, and reliable adhesion. It's designed for a variety of industrial applications including transformer insulation, coil wrapping, cable bundling, and motor masking.
Product Description
Glass cloth tape is a white glass cloth tape with a high-temperature thermosetting silicone pressure-sensitive adhesive. It is designed for use in 600-volt dry location applications motors, and transformers with and without varnish coating

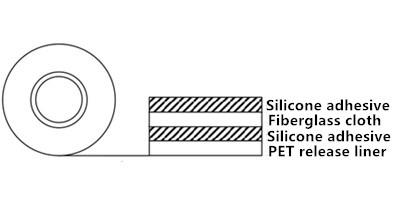

Single Sided Glass Cloth Tape Double Sided Glass Cloth Tape
Name | Glass Cloth Tape |
Material | Fiberglass Cloth+Silicone Adhesive |
Feature | *H-class high temperature resistant 392°F (200°C) *Nice dielectric strength *Insulation and solvent-resistant *Silicone adhesive *removes cleanly with no glue residue. *Abrasion resistance and good mechanical strength |
Applications

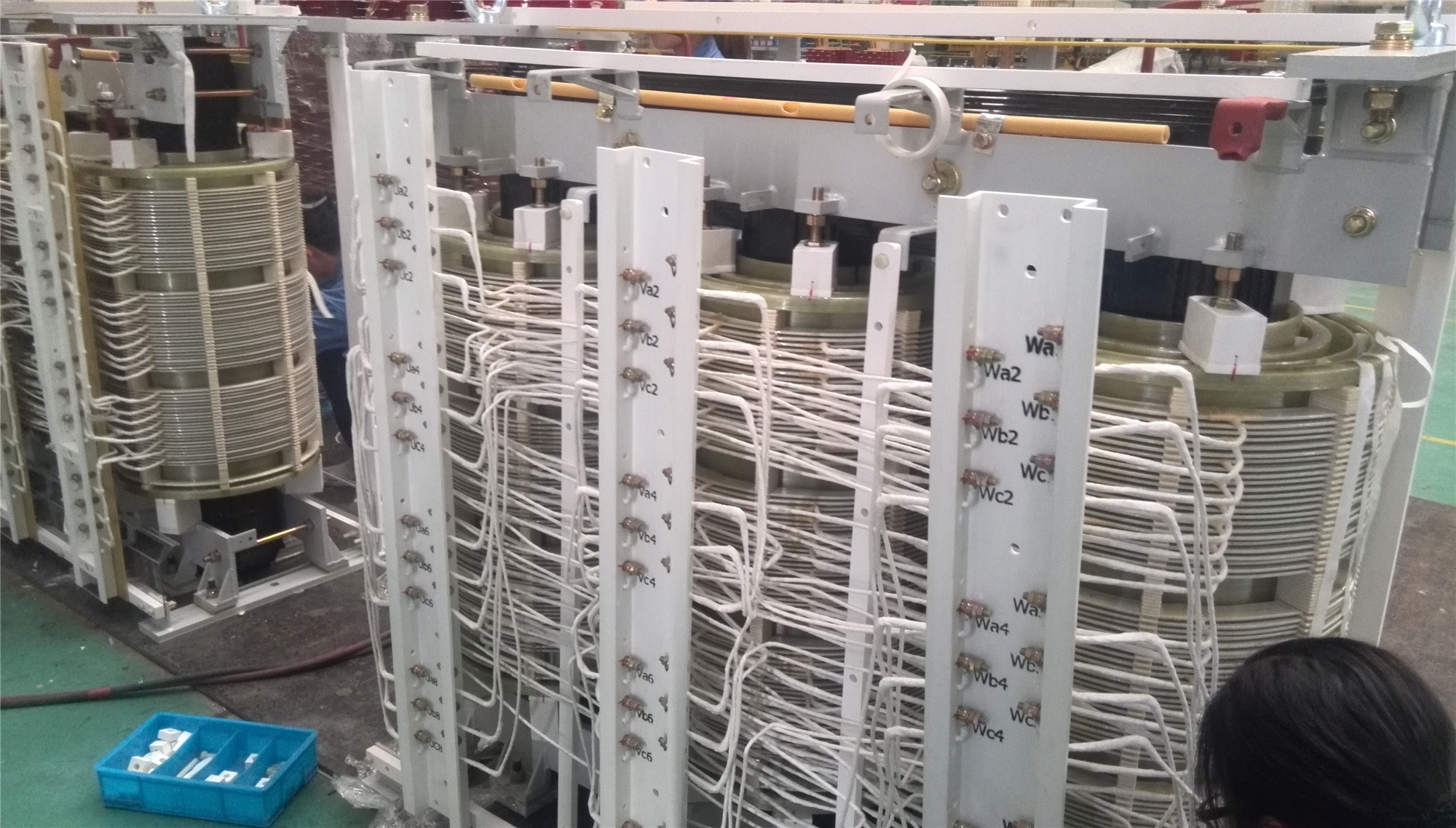

- Transformer insulation

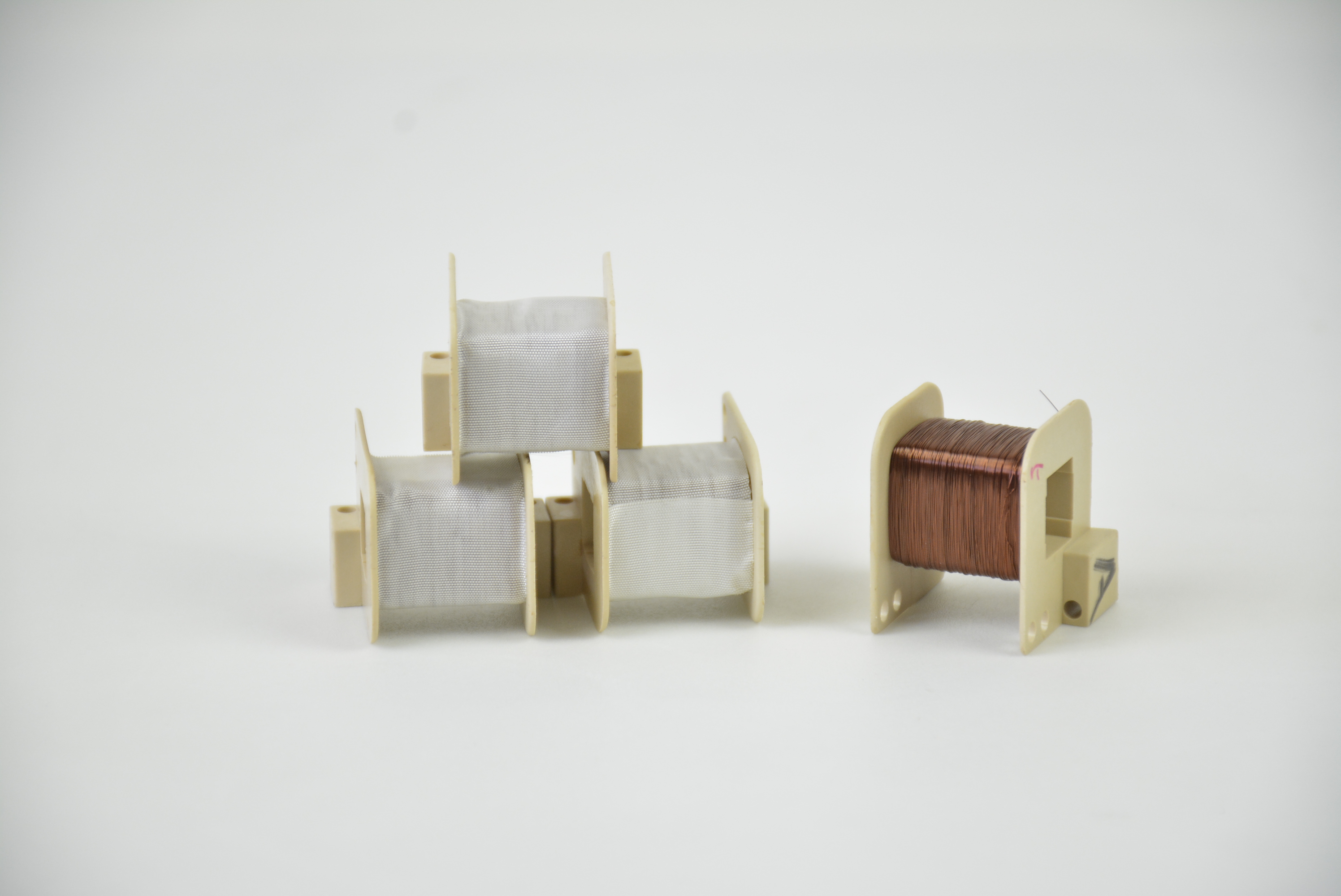

- Electric motor coil wrapping
- High-temperature masking
- Electronics & PCB protection
- Wire and cable bundling
Technical Specifications
| Item | Specification |
|---|---|
| Backing Material | Woven Fiberglass Cloth |
| Adhesive Type | Silicone / Acrylic (customizable) |
| Total Thickness | 0.15mm / 0.18mm / 0.20mm |
| Temperature Resistance | Up to 260°C |
| Color | White / Yellow / Custom |
| Width Range | 5mm – 500mm |
| Length | 10m / 33m / Custom |
Frequently Asked Questions (FAQ)
Q: Can this tape be used for powder coating masking?
A: Yes, our glass cloth tape with silicone adhesive performs well under high temperatures and is suitable for powder coating applications.
Q: Do you offer custom sizes?
A: Absolutely. We support customized widths, lengths, colors, and core diameters upon request.
Q: What's the lead time for bulk orders?
A: Normally 7-15 days depending on quantity and customization needs.
