Fiber Cloth Tape JTT-GC330 – High Adhesion Acrylic Adhesive Tape-0.18mm
Reliable acrylic adhesive — strong holding power and long-lasting performance.
Temperature resistant — suitable for -20℃ to 180℃ continuous operation.
Thickness: 0.18mm, ideal for insulation and protection layers.
Peel adhesion: 6.5N/25mm for stable bonding on metal and plastic surfaces.
Applications: electrical insulation, cable bundling, motor wrapping, and component reinforcement.

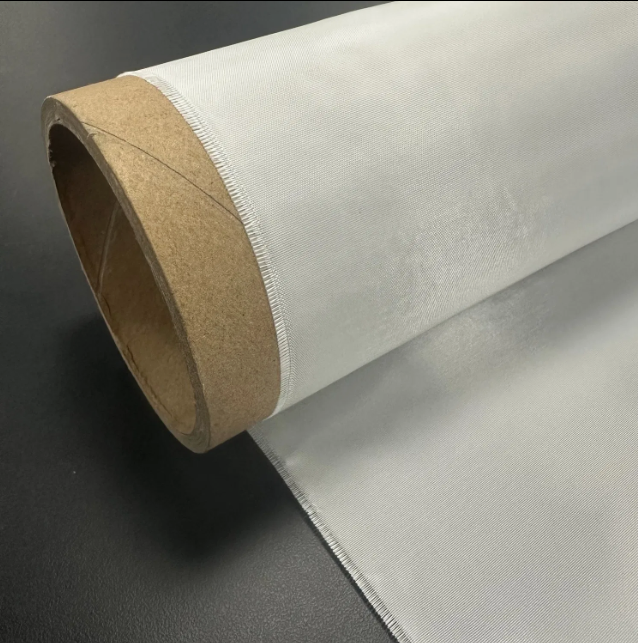

Fiber Cloth Tape JTT-GC330 – High Adhesion Acrylic Adhesive Tape
JIAOTAOTAO Fiber Cloth Tape JTT-GC330 is an industrial-grade adhesive tape made with high-strength fiberglass cloth and coated with acrylic pressure-sensitive adhesive. It provides strong adhesion, flexibility, and heat resistance, making it ideal for insulation, bundling, and protection in electrical and mechanical industries.
Key Features
- Strong Tensile Strength: 850N/25mm ensures durability and tear resistance.
- Stable Acrylic Adhesive: Long-lasting performance with clean removal.
- Heat Resistance: Works reliably from -20℃ to 180℃.
- Optimal Thickness: 0.18mm for insulation and surface protection.
- Consistent Bonding: Peel adhesion rated at 6.5N/25mm.
- Applications: Motor wrapping, coil insulation, cable protection, industrial bonding.
Technical Specifications
| Model | JTT-GC330 |
|---|---|
| Backing Material | Fiberglass Cloth |
| Adhesive Type | Acrylic |
| Total Thickness | 0.18mm |
| Peel Strength | 6.5N/25mm |
| Tensile Strength | 850N/25mm |
| Temperature Resistance | -20℃ ~ 180℃ |
| Color | White / Beige |
| Standard Length | 33m / 50m / Custom |
Applications
Fiber cloth tape JTT-GC330 is widely used in:
- Electrical insulation for transformers and coils
- Protective wrapping for wiring harnesses
- Reinforcement and bundling in industrial production
- Surface protection and mechanical fixation
Why Choose JIAOTAOTAO?
JIAOTAOTAO is a professional fiber cloth tape manufacturer with strict quality control and advanced coating technology. Every roll of tape is test
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
