Mylar tape is a polyester film tape made from **PET (polyethylene terephthalate)** film coated with a pressure-sensitive adhesive.

This material provides excellent electrical insulation, heat resistance, and dimensional stability, making it ideal for use in electronics, batteries, transformers, and industrial insulation.

Mylar is the trade name for polyester film originally developed by DuPont, which is widely used in electrical insulation applications.

You can view detailed product specifications here:
PET Mylar Tape Product Specifications

Different industries require different tape constructions. Common types include:

• Single-sided Mylar tape – Used for electrical insulation and coil wrapping
• Double-sided Mylar tape – Used for bonding and component assembly
• Flame-retardant Mylar tape – Used in transformers and motors
• Colored Mylar tape – Used for identification and insulation layering

Typical specifications of PET Mylar tape may include:

• Backing material: PET polyester film
• Adhesive type: Acrylic pressure-sensitive adhesive
• Total thickness: 0.05mm – 0.08mm
• Temperature resistance: up to 130°C
• Dielectric strength: High electrical insulation performance

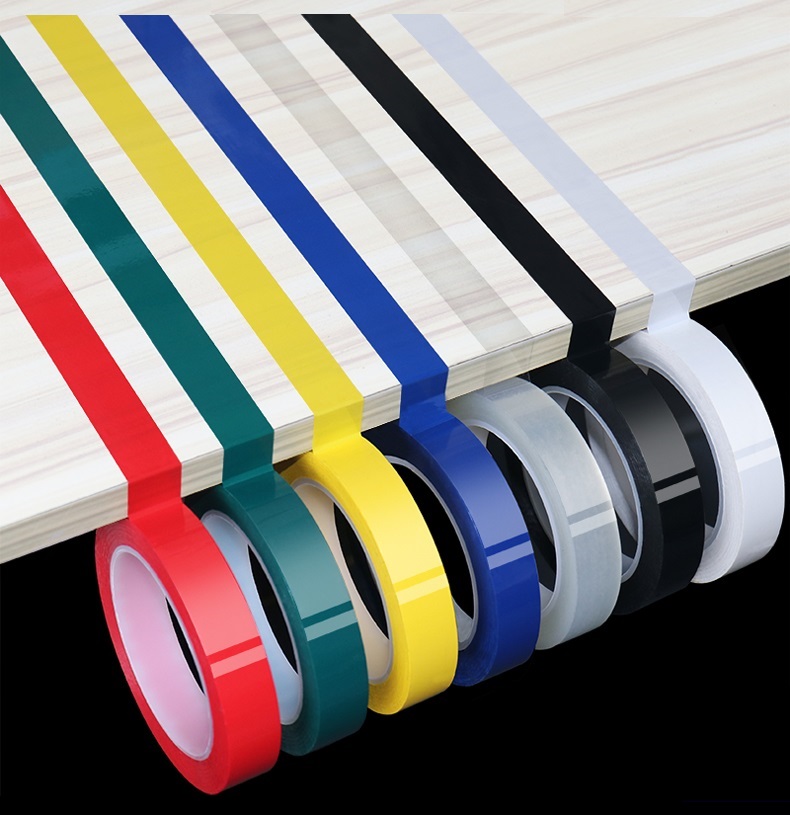

• Color options: Yellow, transparent, blue, green
• Standard width options: 10mm – 1000mm

Technical data reference: PET Mylar Tape Specifications

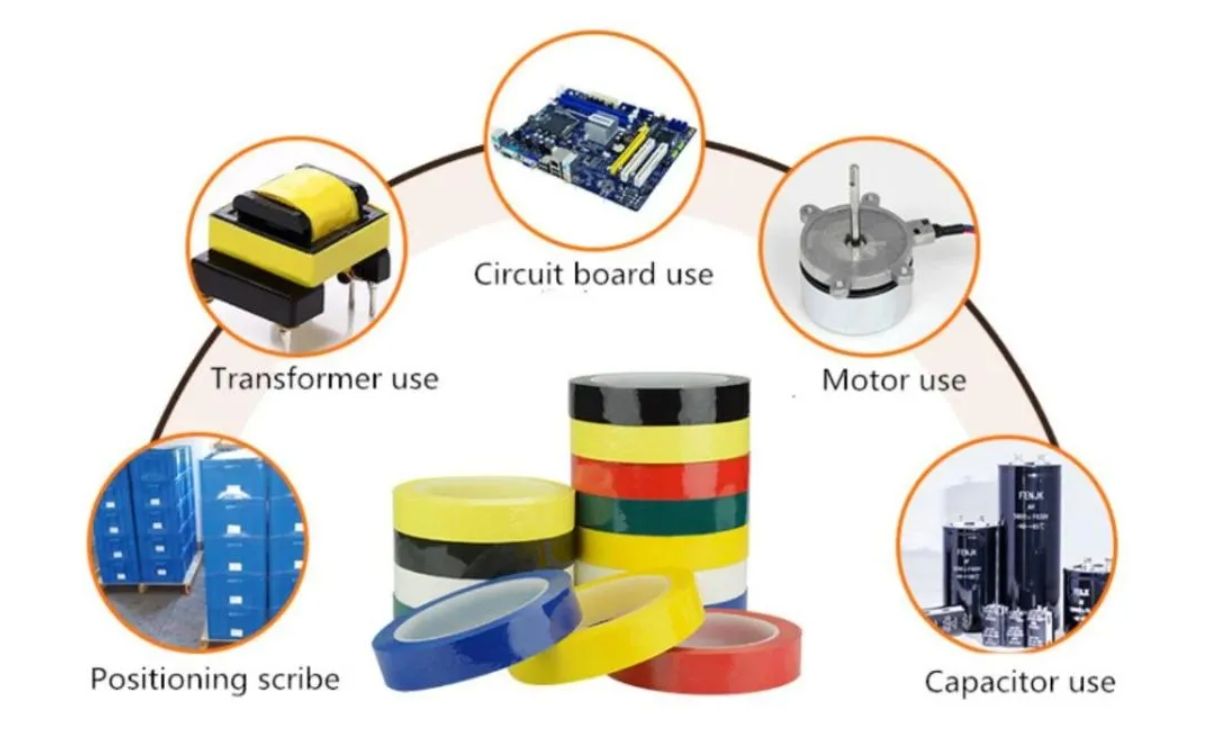

The question “What is Mylar tape used for?” can be answered through its key industrial uses.

• Electrical insulation for transformers and motors
• Lithium battery insulation and wrapping
• PCB board insulation protection
• Cable harness insulation
• Electronic component packaging
• Capacitor and coil insulation

According to insulation material standards referenced by ASTM International, polyester films are widely used in electrical insulation systems.

Selecting the correct Mylar tape depends on application requirements.

Follow these steps:

1. Determine insulation requirements and voltage rating
2. Select the correct thickness based on insulation level
3. Choose temperature resistance suitable for the environment
4. Select width and length according to production needs
5. Confirm adhesive type for bonding performance

Review available specifications here: Mylar Tape Product Page

What is Mylar tape used for?

Mylar tape is used for electrical insulation, battery protection, transformer winding insulation, cable wrapping, and electronic component protection.

Source: PET Mylar Tape Product Specifications

Is Mylar tape heat resistant?

Yes. Standard PET Mylar tape typically withstands temperatures up to about 130°C.

Source: PET Mylar Tape Technical Data

Is Mylar tape electrically insulating?

Yes. PET film provides excellent dielectric strength and insulation properties, which is why it is widely used in electronics and electrical systems.

Source: ASTM insulation material standards

What thickness is common for Mylar tape?

Typical thickness ranges between 0.05 mm and 0.08 mm depending on insulation requirements.

Source: PET Mylar Tape Product Data
