Is Kapton Tape Electrically Conductive?
Is Kapton Tape Electrically Conductive?
No, Kapton tape is not electrically conductive. It is a high-performance electrical insulator made from polyimide film. However, specialized ESD Kapton tape is designed to dissipate static electricity without conducting current.
What Is Kapton Tape?
Kapton tape is a brand-name form of polyimide tape widely used in electronics and industrial manufacturing. It consists of polyimide film coated with silicone adhesive, offering:
- High temperature resistance (up to 260°C)
- Excellent dielectric insulation
- Chemical and radiation resistance
- Dimensional stability
Is Kapton Tape Conductive or Insulating?
Kapton tape is designed to function as an electrical insulator, preventing current flow and protecting sensitive components.
| Property | Standard Kapton Tape | ESD Kapton Tape |
|---|---|---|
| Electrical Conductivity | No (Insulating) | No (Dissipative) |
| Surface Resistance | >10¹² Ω | 10⁶–10⁹ Ω |
| Static Control | No | Yes |
| Main Use | Electrical insulation | ESD-safe environments |
Key Insight: Kapton tape never acts as a conductor. Even ESD versions only dissipate static charges.
Why Kapton Tape Is Not Conductive
- Polyimide Material: Naturally non-conductive polymer structure
- High Dielectric Strength: Prevents electrical breakdown
- Silicone Adhesive: Maintains insulation at high temperatures
This makes Kapton tape essential for applications requiring electrical isolation and thermal stability.

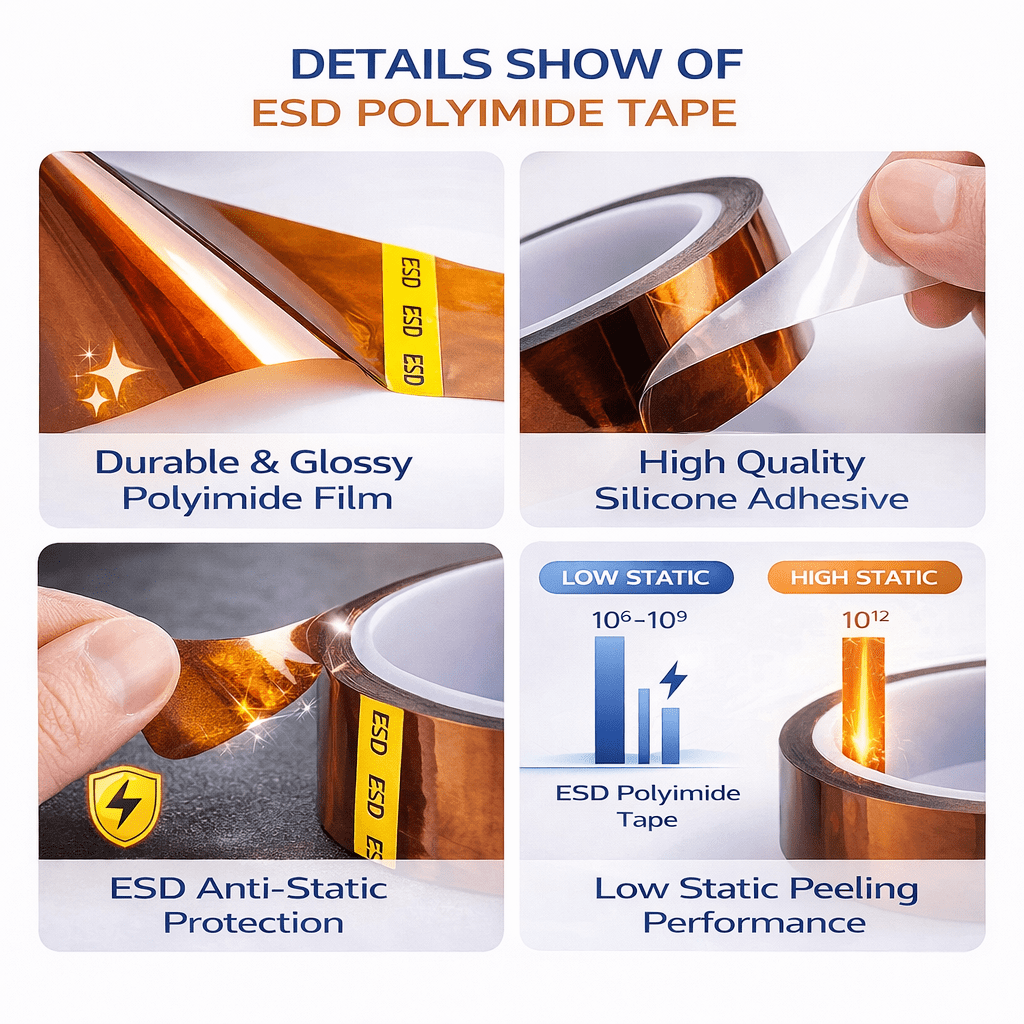

What Is ESD Kapton Tape?
ESD Kapton tape is engineered for environments where static electricity can damage sensitive electronics. It features controlled surface resistivity to safely dissipate static charges.
Conductive Tape → Allows current flow
ESD Tape → Controls and dissipates static safely
Kapton Tape → Insulates and protects circuits
Industrial Applications
- PCB wave solder masking
- Semiconductor manufacturing
- Lithium battery insulation
- 3D printing build plate masking
- Aerospace wiring protection
How to Choose the Right Tape
- For insulation: Standard Kapton tape
- For static-sensitive environments: ESD Kapton tape
- For conductivity: Use copper foil tape instead
People Also Ask (PAA)
Can Kapton tape conduct electricity?
No, Kapton tape is an electrical insulator and does not conduct electricity.
Is Kapton tape safe for electronics?
Yes, it is widely used for insulating and protecting sensitive electronic components.
What is the difference between Kapton and polyimide tape?
Kapton is a brand name of polyimide tape, but both share the same core properties.
When should I use ESD Kapton tape?
Use it in cleanrooms, semiconductor manufacturing, and ESD-sensitive environments.
Conclusion
Kapton tape is not electrically conductive. It is a high-performance insulating material essential in electronics, aerospace, and industrial applications. ESD Kapton tape enhances protection by safely dissipating static charges while maintaining insulation.
Selecting the correct tape ensures reliability, safety, and long-term performance in demanding environments.
