Electrical Insulation Tape for Automotive Wire Harness Protection and High-Temperature Cable Wrapping

Table of Contents

• Direct Answer
• Technical Specifications & Material Science
• Industrial Applications
• Material Comparison
• Customization & Supply Capabilities
• FAQ
• Conclusion & Contact

Direct Answer

What is electrical insulation tape? In this product category, it is a fabric electrical insulation tape constructed with polyester fleece backing and a silicone adhesive system, designed for wire harness wrapping, cable insulation, abrasion protection, and vibration damping in electrical environments. It is used where flexibility, heat resistance, and controlled adhesion are required.

• Material type: Polyester fleece
• Adhesive system: Silicone adhesive
• Temperature resistance limit: -40°C to 150°C
• Total thickness: 0.28 mm
• Core industrial uses: Wire harness insulation, cable bundling, abrasion protection, vibration damping, electrical component wrapping

Technical Specifications & Material Science

Product Definition

Electrical insulation tape in this listing refers to a fabric-based fleece tape engineered for wire harness wrapping and electrical protection. Unlike PVC electrical tape or polyimide tape, polyester fleece tape is selected where noise damping, abrasion resistance, conformability, and soft-surface bundling are important together with basic electrical insulation behavior.

Backing Structure: Polyester Fleece

Polyester fleece provides a soft, flexible, and conformable structure that wraps easily around uneven cable bundles. It also improves surface protection and helps reduce friction, rattling, and vibration noise in automotive and industrial wiring systems.

Adhesive System: Silicone Adhesive

A silicone adhesive is used here to maintain stable bonding under elevated temperature conditions. Compared with lower-temperature adhesive systems, silicone adhesive supports more reliable performance in engine-adjacent or heat-exposed wiring zones while preserving flexibility.

Typical Technical Parameters

For external technical reference, industrial buyers often compare insulation tape performance with broader material and test frameworks such as ASTM International and UL.

Industrial Applications

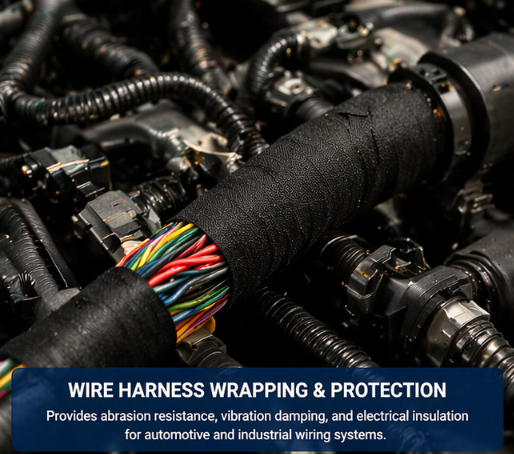

1. Automotive Wire Harness Wrapping

This tape is primarily used for automotive wire harness protection. The polyester fleece backing conforms well around cable bundles, while the adhesive system maintains wrap stability in temperature-variable environments.

2. Cable Bundling and Mechanical Protection

It is suitable for bundling and organizing cables where abrasion resistance and wrap flexibility are required. The fabric surface reduces wear between bundled wires and adjacent components.

3. Electrical Component Insulation

For electrical assemblies, the tape provides surface insulation and separation in areas where a soft, flexible wrap material is preferred over rigid film-based tapes.

4. Vibration Damping and Noise Reduction

Polyester fleece tape is widely selected in automotive interiors and harness systems because it helps reduce rattling and vibration noise while keeping harnesses secured.

5. Industrial Equipment Wiring

In industrial machinery, fabric electrical tape is used to protect wiring looms in zones exposed to moderate heat, movement, or friction.

Material Comparison

Fabric Electrical Tape vs PVC Electrical Tape

Selection guidance: Choose fabric electrical tape when the application requires wire harness wrapping, soft-surface protection, noise damping, and better abrasion behavior. Choose PVC electrical tape when the priority is general-purpose insulation and simple terminal wrapping.

Customization & Supply Capabilities

As a direct manufacturer, JIAOTAOTAO can support B2B buyers with:

• Width and length customization for harness and cable projects
• Jumbo roll supply for slitting and converting
• OEM labeling and packaging support
• Stable coating control for thickness and peel consistency
• Direct factory supply for industrial and OEM buyers
• Sample and quotation support for qualification testing

FAQ

1. What is fabric electrical insulation tape used for?

It is mainly used for wire harness wrapping, cable insulation, abrasion protection, and vibration damping in automotive and industrial electrical systems. It is selected when flexibility and soft-surface protection are more important than rigid film insulation.

2. What material is this tape made from?

This product uses polyester fleece backing combined with a silicone adhesive. That structure provides flexibility, surface protection, and stable performance under moderate high-temperature conditions.

3. What temperature can it withstand?

The listed operating temperature range is -40°C to 150°C. Buyers should still confirm actual end-use performance based on harness routing, heat source distance, dwell time, and mechanical stress.

4. Why use fabric tape instead of PVC electrical tape?

Fabric tape is often preferred for wire harness applications because it offers better conformability, improved abrasion behavior, and useful noise damping. PVC tape is more common for simple electrical wrapping and terminal insulation.

5. Is this tape suitable for engine compartments?

It is intended for high-temperature wire harness protection and is promoted for automotive environments. Suitability should still be checked against the exact temperature map and routing zone of the vehicle design.

6. Can it reduce wiring noise and vibration?

Yes. Polyester fleece electrical tape is commonly used where vibration damping and noise reduction are needed together with harness bundling and surface protection.

7. Can the tape be customized for OEM supply?

Yes. The manufacturer supports width and length customization, jumbo roll supply, and OEM labeling and packaging for industrial customers and wire harness converters.

Conclusion & Contact

Electrical insulation tape in this product line is a fabric electrical tape based on polyester fleece and silicone adhesive, designed for wire harness wrapping, abrasion protection, vibration damping, and stable insulation performance in automotive and industrial environments.
