Antistatic Tape for PCB Masking, ESD Protection, and Electronics Assembly

SEO Title: Antistatic Tape for PCB Masking & ESD Protection

SEO Meta Description: Antistatic tape with polyimide film and silicone adhesive for low static peeling, PCB masking, electronics assembly, and ESD-sensitive protection up to 260°C short-term.

SEO URL Slug: antistatic-tape-low-static-polyimide-tape

Table of Contents

• Direct Answer
• Technical Specifications & Material Science
• Industrial Applications
• Material Comparison
• Customization & Supply Capabilities
• FAQ
• Conclusion & Contact

Direct Answer

What is antistatic tape? It is a low static polyimide tape constructed with a polyimide film backing and a silicone adhesive system, designed for PCB masking, electronics assembly, and ESD-sensitive environments. Its key function is to reduce charge generation during peeling while maintaining heat resistance, insulation stability, and clean process performance.

• Material type: Polyimide film
• Adhesive system: Silicone adhesive
• Total thickness: 0.05 mm
• Surface resistivity: 10⁶–10⁹ Ω/sq
• Temperature resistance: 220°C long-term / 260°C short-term
• Core uses: PCB masking, ESD protection, electronics assembly, component transport, cable management

Technical Specifications & Material Science

Product Definition

Antistatic tape in this product line is a low static peeling polyimide tape developed for electrostatic-sensitive manufacturing environments. It combines the thermal and dielectric advantages of polyimide film with controlled antistatic performance for use in electronics processes where conventional high-temperature tape may generate unwanted charge during removal.

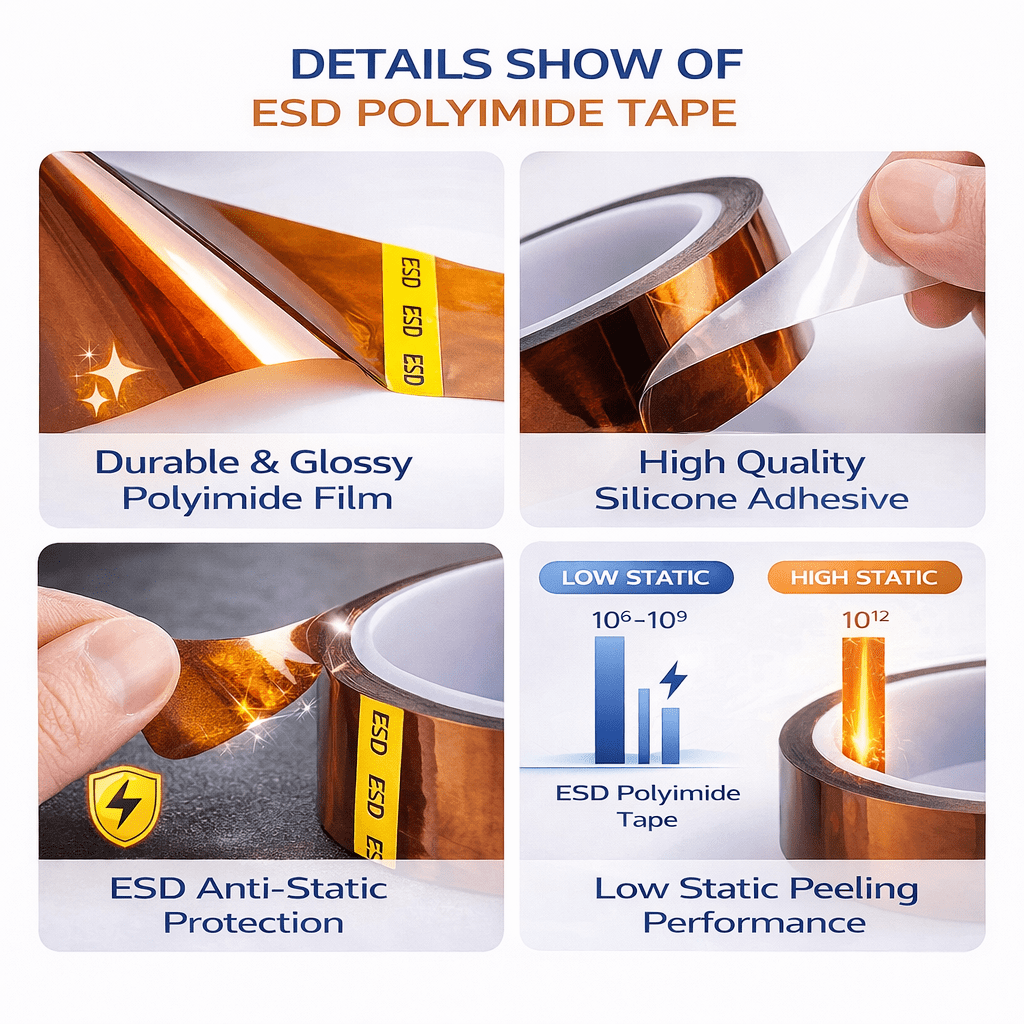

Backing Structure: Polyimide Film

Polyimide film is widely used in electronics because it offers excellent dimensional stability, heat resistance, insulation performance, and mechanical strength. In antistatic tape, the film serves as a stable carrier for precision masking and protective handling operations.

Adhesive System: Silicone Adhesive

The silicone adhesive system provides consistent adhesion, process stability, and clean removal after heating. It is suitable for PCB and assembly environments where the tape must stay stable under temperature exposure while minimizing residue and charge generation.

Controlled Antistatic Performance

The product is specified with a surface resistivity of 10⁶–10⁹ Ω/sq, which places it in a controlled antistatic range suitable for ESD-managed manufacturing and handling areas.

Typical Technical Parameters

Industrial Applications

1. PCB Masking

Antistatic tape is used for PCB masking in high-temperature processes where charge-sensitive boards and components require controlled static behavior during tape removal.

2. Electronics Assembly

In electronics assembly lines, the tape helps protect sensitive parts while maintaining stable adhesion and minimizing electrostatic charge generation in controlled process environments.

3. ESD-Sensitive Component Protection

The low static peeling feature is important in areas handling chips, modules, connectors, and precision assemblies that can be affected by static discharge during manufacturing or transport.

4. Wire Harness and Cable Management

The product page also positions the tape for wire harnessing and cable management where antistatic behavior and insulation support are beneficial.

5. Device Handling and Transport

It can be used for circuit board handling and device transport where temporary protective fixation is needed without introducing excessive static charge.

Material Comparison

Antistatic Low Static Polyimide Tape vs Standard Polyimide Tape

Selection guidance: Choose antistatic tape when ESD control and low static peeling are part of the process requirement. Choose standard polyimide tape when the application needs only temperature resistance and general masking performance.

Customization & Supply Capabilities

As a direct manufacturer, JIAOTAOTAO can support industrial buyers with:

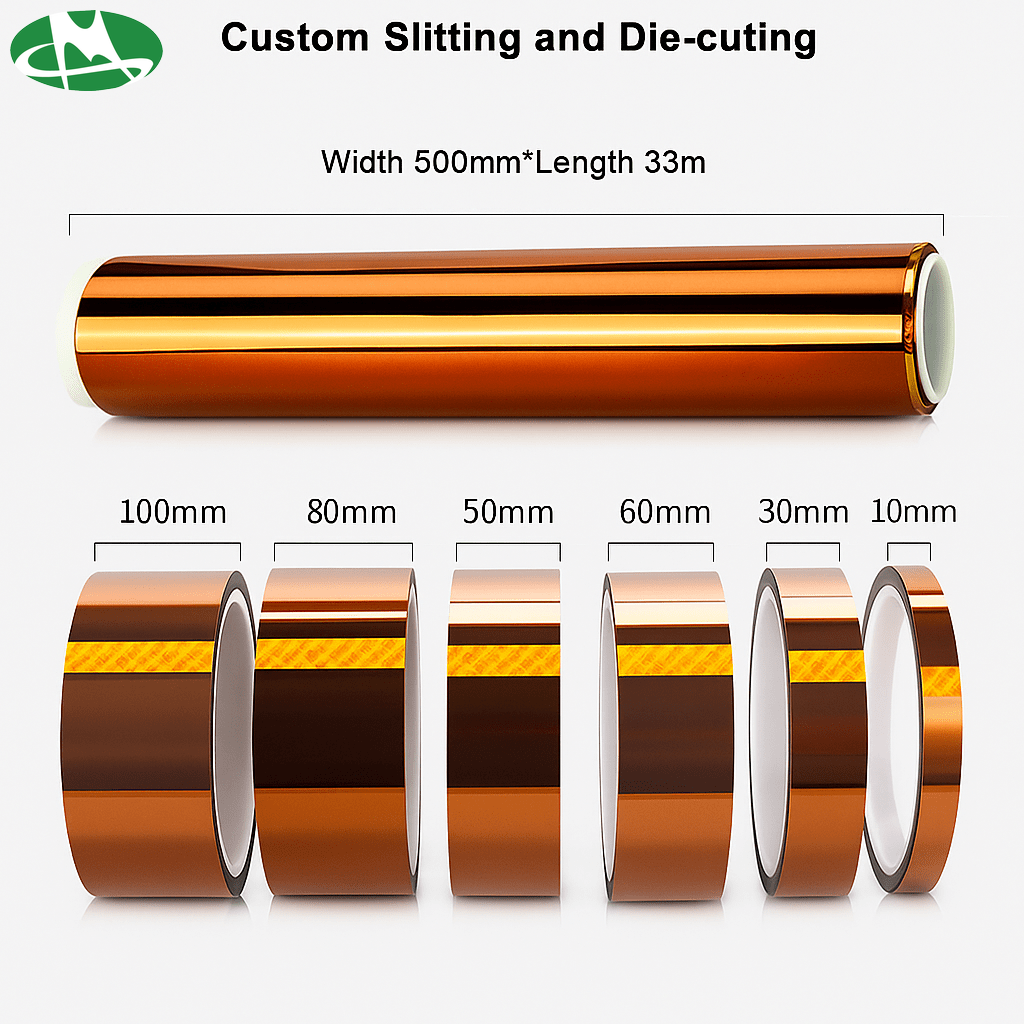

• Custom widths, roll lengths, and die-cut shapes
• OEM customization for branding and specifications
• Factory-direct bulk supply for electronics manufacturing clients
• Strict inspection for thickness uniformity, adhesive reliability, and ESD performance
• Compatibility with automated taping systems

FAQ

1. What is antistatic tape used for?

It is used for PCB masking, electronics assembly, ESD-sensitive component protection, wire harness management, and device handling where low static peeling is required.

2. What makes low static polyimide tape different from standard PI tape?

The main difference is its controlled static behavior during peeling. It is designed to reduce charge build-up while still providing high-temperature resistance and insulation stability.

3. What is the surface resistivity of this tape?

The listed surface resistivity is 10⁶–10⁹ Ω/sq, which supports antistatic performance in controlled electronics manufacturing environments.

4. How much heat can it withstand?

The product page lists 220°C long-term and 260°C short-term temperature resistance.

5. Is it suitable for PCB masking?

Yes. PCB masking is one of the main application scenarios listed for this low static polyimide antistatic tape.

6. Can it be customized?

Yes. The manufacturer offers custom sizes, branding, specifications, and die-cut formats for industrial clients.

7. Does it support automated production?

Yes. The product page states that it is compatible with automated taping systems, which is useful for electronics manufacturing lines.

Conclusion & Contact

Antistatic tape in this product line is a low static polyimide tape designed for PCB masking, electronics assembly, ESD-sensitive handling, and controlled static protection where standard high-temperature tape may not be sufficient.

Request a data sheet, free sample, or direct factory quotation from JIAOTAOTAO.
