0.20 mm｜Thermal Conductive Double Sided Tape
0.20 mm｜Thermal Conductive Double Sided Tape
Thermal Conductive Double-Sided Tape is a precision industrial bonding material designed to combine heat transfer and component fixation in one structure. JIAO TAO TAO TAPE model JTT-TD300 uses an acrylic adhesive system filled with ceramic particles to provide stable thermal conductivity and secure bonding for electronic assemblies.
This product is designed for direct integration into electronics and industrial assemblies without additional curing or surface treatment. It is suitable for automated processing, die-cutting, and long-term use in controlled industrial environments.

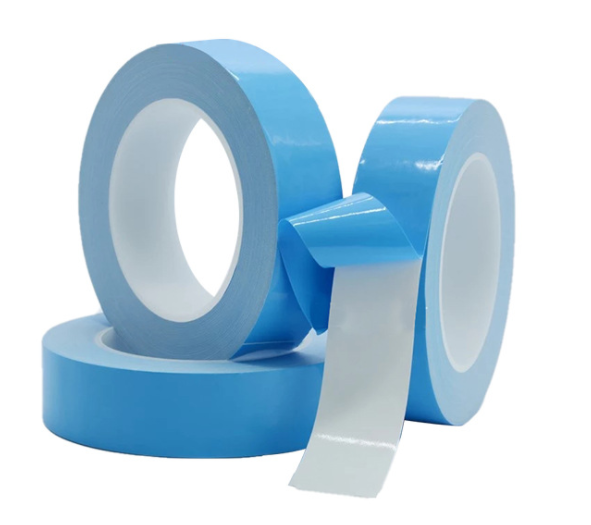

What Is Thermal Conductive Double-Sided Tape?
Thermal conductive double-sided tape is an industrial adhesive material used where both thermal management and bonding are required. It is commonly applied between heat-generating components and heat sinks, metal housings, or thermally stable substrates. JTT-TD300 is engineered to provide consistent thermal conductivity while maintaining secure adhesion between bonded parts.
Compared with conventional grease or mechanical fastening, thermal adhesive tape offers clean processing, thickness control, and simplified assembly. It can support compact device design by enabling direct bonding without screws or clips.
Key takeaway: JTT-TD300 combines heat dissipation, electrical insulation, mechanical fixation, and die-cut processing capability in one thermal bonding solution.
Core Features of JTT-TD300
1. Thermal Conductivity
JTT-TD300 is listed with a thermal conductivity of 1.5 W/m·K, making it suitable for controlled heat transfer in electronic assemblies.
2. Strong Adhesion
The product page lists peel strength of 1500 g/25mm and adhesion strength of 24 N/25mm, supporting stable bonding without screws or clips.
3. Wide Temperature Resistance
The tape is rated for -40°C to +150°C, which supports use in LED systems, power electronics, industrial modules, and automotive electronics.
4. Electrical Insulation
The ceramic-filled acrylic adhesive is described as electrically insulating, making it suitable for use around sensitive electronic components.
5. Automated Processing Compatibility
JTT-TD300 is suitable for die-cutting, kiss-cutting, sheet formats, rolls, and custom shapes, which makes it practical for OEM and automated assembly lines.
Specifications
| Item | Specification |
|---|---|
| Model | JTT-TD300 |
| Total Thickness | 0.30 mm |
| Thermal Conductivity | 1.5 W/m·K |
| Peel Strength | 1500 g/25mm |
| Adhesion Strength | 24 N/25mm |
| Hardness | 29 Shore 00 |
| Temperature Resistance | -40°C to +150°C |
| Color | White |
| Adhesive System | Acrylic + Ceramic Filler |
| Structure | Double-sided thermal conductive adhesive tape |
| Die-cutting | Fully customizable |
The page also notes optional higher thermal conductivity versions in the 2.0–3.0 W/m·K range for custom projects.
Typical Applications of Thermal Conductive Double-Sided Tape
- LED modules and LED panels
- Heat sink bonding
- Power supply units
- Battery packs
- PCB thermal management
- Communication equipment
- Automotive electronic components
Recommended users: LED lighting manufacturers, power electronics assemblers, battery pack integrators, PCB thermal solution providers, automotive electronics suppliers, and OEM heat management buyers.
Tape vs Thermal Grease
| Feature | JTT-TD300 Thermal Tape | Thermal Grease |
|---|---|---|
| Installation | Clean and fast | Messy and tool-dependent |
| Curing | No curing needed | May require stabilization |
| Pump-out Issue | None | Common in long-term use |
| Thickness Control | Accurate | Hard to maintain |
| Bonding | Strong adhesion | No adhesion |
How to Choose the Right Thermal Tape
Choose by Thermal Conductivity
If the project needs moderate heat dissipation with reliable bonding, 1.5 W/m·K can be practical. For higher heat loads, customized higher-conductivity versions may be more suitable.
Choose by Thickness
The page lists JTT-TD300 at 0.30 mm total thickness. Thicker constructions may help with interface filling and stress absorption, while thinner versions are often preferred for slimmer assemblies.
Choose by Substrate Type
This tape is suitable for aluminum, stainless steel, anodized plates, polyimide, ceramic substrates, composite materials, and electronic modules.
Choose by Processing Requirement
If the assembly requires die-cut parts, automated placement, sheet format, or roll supply, confirm the converting requirement before production.
FAQ
1. What is thermal conductive double-sided tape used for?
It is used where both heat transfer and bonding are required, such as LED modules, heat sink bonding, battery packs, PCB thermal management, and automotive electronics.
2. What is the thermal conductivity of JTT-TD300?
The listed thermal conductivity is 1.5 W/m·K.
3. Is JTT-TD300 electrically insulating?
Yes. The product page describes the ceramic-filled acrylic adhesive as electrically insulating.
4. What temperature range can it handle?
The listed temperature resistance is -40°C to +150°C.
5. Can this tape be die-cut?
Yes. The page states that die-cutting is fully customizable and the product is suitable for automated processing.
