3D Printing Tape for Build Plate Adhesion, Surface Protection, and High-Temperature Masking

Table of Contents

• Direct Answer
• Technical Specifications & Material Science
• Industrial Applications
• Material Comparison
• Customization & Supply Capabilities
• FAQ
• Conclusion & Contact

Direct Answer

What is 3D printing tape? It is a paper-based masking and surface-control tape used on print beds and industrial work surfaces to improve temporary adhesion, support clean release, and protect selected areas during heating or finishing. In this product category, it is constructed with crepe paper, washi paper, or composite paper backing coated with a rubber or acrylic pressure-sensitive adhesive.

• Material type: Crepe paper / Washi paper / Composite paper
• Adhesive system: Rubber adhesive / Acrylic adhesive
• Temperature resistance limit: 80°C–220°C depending on type
• Total thickness: 0.09–0.18 mm
• Core industrial uses: 3D printing bed masking, painting masking, powder coating, surface protection, industrial finishing

Technical Specifications & Material Science

Product Definition

For this product line, 3D printing tape falls under the broader paper tape category used for industrial masking and surface control. It is designed to balance conformability, clean removal, controlled adhesion, and moderate heat resistance. Compared with film tapes, paper tape is often selected where easy handling, surface compatibility, and repositionable masking behavior are more important than electrical insulation.

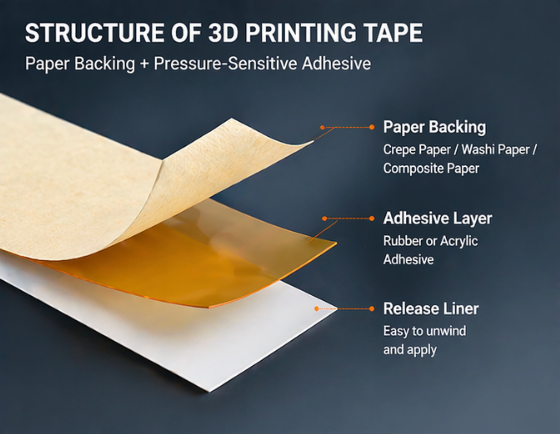

Backing Structure

The backing may be crepe paper, washi paper, or composite paper, depending on the application target. Washi constructions generally provide smoother edges and cleaner paint lines, while crepe paper constructions offer good hand tearability and conformability on curves and irregular surfaces.

Adhesive System

Rubber adhesive grades are commonly used where quick tack and practical masking adhesion are required. Acrylic adhesive grades are preferred where heat resistance, UV stability, or cleaner removal under more demanding process conditions is needed.

Typical Technical Parameters

For external technical reference, buyers often compare masking tape performance against broader testing and material frameworks such as ASTM International and UL.

Industrial Applications

1. 3D Printing Build Plate Surface Control

Paper-based 3D printing tape can be applied to a print bed as a controlled contact surface for temporary part adhesion. It is used where the operator wants easier part removal, quick surface renewal, and a low-cost consumable layer that can be replaced after repeated print cycles.

2. Painting and Decorative Masking

The same tape family is widely used for painting applications because it offers clean removal, good edge conformity, and practical hand application. Washi and painter-grade paper tapes are preferred where sharp masking lines are required.

3. Powder Coating and High-Temperature Curing

High-temperature paper tape grades are used in powder coating and industrial curing processes where masking materials must withstand elevated oven temperatures while still peeling away without adhesive residue.

4. Surface Protection During Manufacturing and Assembly

Paper tape is suitable for temporary protection of selected surfaces during assembly, machining preparation, finishing, and handling. It helps isolate work zones without leaving visible contamination after removal.

5. Construction, Decoration, and Industrial Finishing

In construction and general industrial finishing, the tape is used for trim masking, edge protection, and temporary hold-down tasks where conformability and clean release are important.

Material Comparison

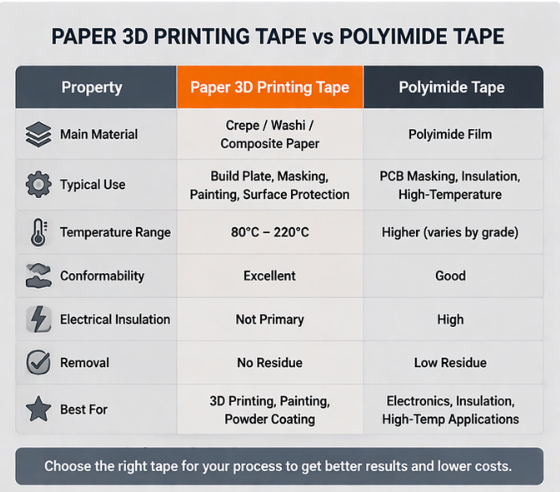

Paper 3D Printing Tape vs Polyimide Tape

Selection guidance: Choose paper 3D printing tape when you need a printable consumable surface, easy replacement, strong conformability, and practical masking behavior. Choose polyimide tape when the application requires stronger dielectric insulation and more demanding electronics-grade heat resistance.

Customization & Supply Capabilities

As a direct manufacturer, JIAOTAOTAO can support B2B buyers with:

• Multiple paper constructions: crepe, washi, composite
• Adhesive options: rubber adhesive and acrylic adhesive
• Temperature grades: normal, UV-resistant, and high-temperature types
• Custom width: available for OEM and converter projects
• MOQ flexibility: suitable for testing and ongoing supply
• Free samples for testing: available for application validation
• OEM supply: for automotive, coating, painting, and industrial markets

FAQ

1. What is 3D printing tape used for?

3D printing tape is used as a removable build-surface layer to support temporary adhesion, easier part release, and print-bed maintenance. In this paper tape category, it is also widely used for masking, painting, and surface protection in industrial processes.

2. What material is this 3D printing tape made from?

This product line uses crepe paper, washi paper, or composite paper backing with either rubber adhesive or acrylic adhesive, depending on the target application and temperature requirement.

3. What temperature can it withstand?

Depending on type, the tape can handle 80°C to 220°C. Buyers should select the correct grade based on print-bed temperature, curing condition, dwell time, and whether the application includes painting or powder coating exposure.

4. Does the tape leave residue after removal?

The product specification states no adhesive residue after removal. Actual removal cleanliness still depends on surface type, dwell time, temperature, and whether the correct adhesive system has been selected for the process.

5. Can it be used for powder coating or painting?

Yes. This paper tape line is specifically positioned for painting, powder coating, industrial masking, and surface protection, with different constructions available for normal, UV-resistant, and high-temperature use.

6. What thickness range is available?

The listed total thickness range is 0.09 mm to 0.18 mm. Thickness choice should be matched to handling preference, edge conformity, masking precision, and the thermal demand of the application.

7. Can the tape be customized for OEM supply?

Yes. Width is customizable, and the manufacturer offers multiple backing and adhesive systems to support OEM and industrial converter requirements.

Conclusion & Contact

3D printing tape in this product category is a paper-based masking and surface-control tape designed for build plate use, painting, powder coating, and industrial finishing. It is selected where clean removal, conformability, replaceable surface coverage, and process flexibility matter.

Request a data sheet, free sample, or direct factory quotation from JIAOTAOTAO.
