Hand-Tearable Acetate Cloth Tape – Matte Finish | High-Strength Industrial Grade
Adhesive Pressure-Sensitive Acrylic / Rubber Adhesive (optional)
Color Options Black, White, Custom
Thickness 0.18mm – 0.25mm (custom available)
Adhesion 1.5–2.2 N/25mm (varies by adhesive type)
Tensile Strength 80–120 N/25mm
Temperature Resistance -10°C ~ +120°C
Elongation 8–12%
1. Product Overview
Thishand-tearable acetate cloth tape is a flexible, matte-surface industrial tape designed for electrical insulation, cable wrapping, harness bundling, and various general-purpose applications. Manufactured with an acetate cloth carrier and coated with a strong pressure-sensitive adhesive, it provides excellent conformability and high-temperature performance.
With its smooth matte cloth tape finish, stable tack, and hand-tearable structure, it is widely used in electronics, automotive wiring, transformer coils, and equipment bundling. The black version is commonly used as black industrial cloth tape due to its durability and clean, non-reflective surface.
2. Key Features
● Matte Surface for Non-Reflective Applications
Thematte duct tape style surface helps reduce light reflection and is ideal for professional harnessing and industrial environments.
● Easy Hand-Tear Performance
The acetate cloth backing allows straight, clean tearing without tools—making it highly practical on production lines.
● Strong Adhesion
High-performing pressure-sensitive adhesive ensures reliable bonding to plastics, wires, metal, rubber, and uneven surfaces.
● Excellent Electrical Insulation
Acetate cloth provides stable dielectric strength, suitable for:
Motor and transformer coil wrapping
Cable insulation and bundling
Electronic components protection
● High Temperature Resistance
Performs consistently in elevated temperatures, ideal for industrial wiring and electrical assembly.
● Flexible & Conformable
Cloth backing bends easily around curves and corners without lifting or peeling.
3. Technical Specifications
| Item | Description |
|---|---|
| Product Name | Hand-Tearable Acetate Cloth Tape |
| Backing Material | Acetate Cloth |
| Adhesive | Pressure-Sensitive Acrylic / Rubber Adhesive (optional) |
| Color Options | Black, White, Custom |
| Thickness | 0.18mm – 0.25mm (custom available) |
| Adhesion | 1.5–2.2 N/25mm (varies by adhesive type) |
| Tensile Strength | 80–120 N/25mm |
| Temperature Resistance | -10°C ~ +120°C |
| Elongation | 8–12% |
| Core Size | 1"/ 1.5"/ 3" |
| Available Width | 10mm–1250mm |
| Available Length | 10m / 20m / 25m / Custom |
4. Typical Applications
● Electrical Insulation
Widely used in coil wrapping, motor insulation layers, transformer bundling, and wire harness protection.
● Cable Marking & Bundling
The matte surface makes it suitable for:
Cable grouping
Labeling
Identification marking
● Electronics Manufacturing
Used in mobile phones, computers, small appliances, and PCB protection.
● Automotive Wiring
Asblack industrial cloth tape, it is ideal for:
Car wire harness bundling
Anti-friction protection
Noise deadening
● General Industrial Use
Replacingmatte duct tape in professional environments where a cleaner, thinner, stronger cloth tape is needed.
Industry Solutions Comparison
1. Electronics Manufacturing
- Pain Point: Component displacement due to high temperatures
- JiaoTaoTao Solution: JT-ACT-05 (Ultra-thin design, 6.0kV voltage resistance)
- Benefit: 25% increase in production yield
2. New Energy
- Pain Point: Electrolyte corrosion of tapes
- JiaoTaoTao Solution: JT-ACT-18-BIO (70% corrosion resistance improvement)
- Benefit: 15% extension in battery lifespan
3. Military/Aerospace
- Pain Point: Harness failure under extreme temperatures
- JiaoTaoTao Solution: JT-ACT-22-FR (Full-temperature stability: -40℃~260℃)
- Benefit: 99.99% mission reliability
4. Medical Devices
- Pain Point: Biocompatibility deficiencies
- JiaoTaoTao Solution: JT-ACT-10 (ISO 10993 certification)
- Benefit: 50% reduction in compliance approval time

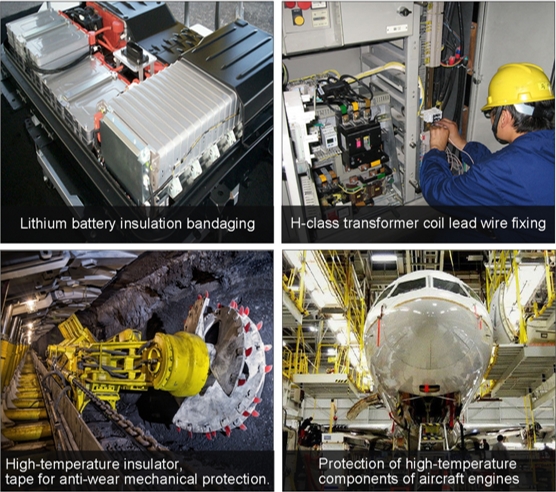

Typical Applications
Transformer Interlayer Insulation
- High-temperature resistance: 180°C
- Anti-aging properties
- Replaces traditional glass fiber cloth (insulation ↑30%)
Wrapping for Electronic Appliances
- Short circuit prevention
- Solvent-resistant and punchable
- Applications: LCD screens, induction cookers, air conditioners
High-Temperature Protection Scenarios
- Long-term temperature resistance: 80°C
- Short-term temperature resistance: 120°C
- Use cases: Motors, coils, computer motherboards
5. Advantages of Our Matte Acetate Cloth Tape
Customizable thickness, adhesive, and colors
Guranteed matte surface, suitable for non-reflective industrial use
OEM/ODM printing, packaging, and sizes
Stable quality for high-volume production lines
Durable performance under mechanical friction
6. Available Colors & Styles
Black Matte Cloth Tape (most popular)
White Matte
Beige/Natural
Custom Pantone colors available
7. Packaging
Individual shrink-wrapped rolls
Multi-roll industrial packaging
Custom barcode label / OEM brand printing available
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
